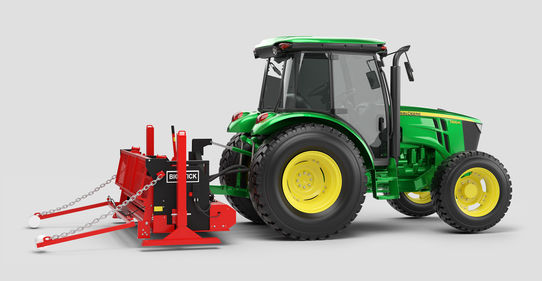

BigTick®1040
BigTick 1040
BigTick®1040 is the best and most economical solution for harvesting high-quality large turf rolls.
Features
The BigTick®1040 is durable, heavy in weight, and has a solid design. It is the best and most economical solution for harvesting high-quality large turf rolls. With the speed of operation offered by the BigTick®1040, a high production capacity of 2400 meter per hour is achieved. A big turf roll has a maximum width of 40 inches (1m). It becomes possible to harvest two 20-inch (0.5m) turf rolls by installing the optional center colter disk. This turf harvesting machine delivers consistent thickness and compact large turf rolls. Top-quality blades ensure top-quality turf rolls.
Advantages of the BigTick®1040 when harvesting large turf rolls
-
Top-quality and strong cutting blade
-
Heavy frame and sturdy pressure roller
-
Optional middle coulter disk to split the roll width in half
-
Standard featuring electronic thickness control
-
Manually adjustable thickness control for general adjustments
Required tractor
-
2- or 4-wheel drive tractor with at least 40 HP
-
Category II three-point linkage
Specifications
Cutting width
40 inch (1m) of 48 inch (1,2m)
Cutting length
Up to 40m for single rolls
Capacity
Cutting speed approx. 40m/minute
Blade type
Van Vuuren coulter blade system
Optional
Automatic cutting to length
